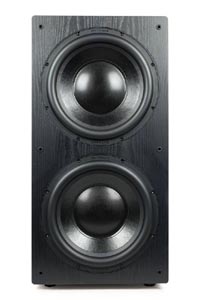

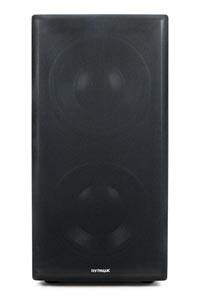

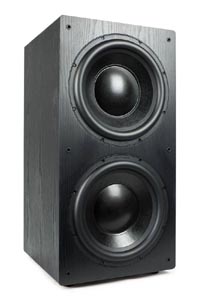

  L22 Direct Servo subwoofer (discontinued for reference only)
Dual 12" driver HT/music sub

Musical sub on a budget

Looking for an affordable home theatre sub that is also tight and musical? L22 uses our proprietary servo design to gain low frequency clarity and articulation. For home theatre use, L22 uses two 12" driver to deliver low frequency impact and output that home theatre demands. While many of our competitors limit their best technology (such as servo) to their top level models, we wanted to make Direct Servo affordable, so we've held nothing back. As a result, you get the tight and music bass you wouldn't normally expect from a subwoofer at this price range.

Direct Servo Technology

You may have heard about other servo subwoofers which are generally well regarded for their accuracy. It is a well established technology, most often based around an accelerometer which measures cone movement. Our Direct Servo technology has significant advantages over other servo technologies. We use a sensing servo coil which acts like a microphone which compares the original signal to what the subwoofer is actually reproducing. The signal is then corrected instantly to compensate for any differences. Once you understand the concept, you may wonder like we do why anyone would make a subwoofer any other way.

Some of the benefits of Direct Servo include:

  • Reduction of the effects of thermal compression are eliminated under normal operation
  • Higher efficiency allowing output which would normally require a more powerful amplifier
  • Deep bass extension can be achieved using a low mass driver with superior transient response
  • Mechanical and thermal memory effects are reduced, further improving transient response
  • Much greater damping control over the cone with the effective in-box Q value of 0.3 (0.1 for driver itself) resulting in much tighter and accurate bass than conventional designs of typical in-box Q value of 0.8-0.9
  • Dramatic reduction of the re-radiation of bass from inside the box

Read more about Direct Servo in our technology section.

View animation demonstrating how Direct Servo works >

This budget level sub delivers the same articulate and tuneful bass that our subs are known for and yet provides enough HT bass thanks to its sealed design. The combination of servo and a sealed enclosure is what makes this sub deliver on both quality and quantity in bass. This model has a 120-240v switchable power. Price includes shipping to 48 US continental states only. Shipping to other region or country should inquire us for actual cost. Shipping and duty to Canada is an additional cost depending on shipping address.

Documentation:
Quickguide
Integration guide

Continue to Options & Features >
